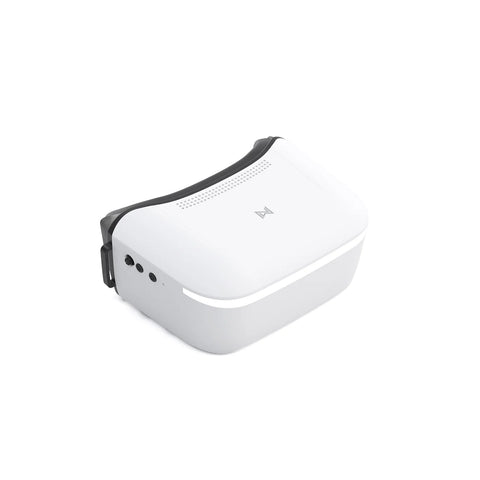

WalkSnail Avatar HD Goggles L
| Model： | Avatar HD Goggles L |
| Communication Frequency | 5.725-5.850GHz |
| Transmitter Power(EIRP) | FCC:<30dBm; CE:<14dBm; SRRC:<20dBm; MIC:<25dBm |
| I/O Interface | 4Pin 3.5mm Plug, DC5.5*2.1mm, Micro SD Card Slot, |
| Gyro | Nine-axis gyroscope |
| Transmission Resolution | 1080p60fps, 720p60fps |
| Code Rate | Max 50 Mbps |
| Min. Latency | Average 32ms |
| Average Gain | 4.9dBi |
| Polarization | LHCP |
| Transmission Distance | ＞4km |
| Channel | 8 |
| Screen Resolution | 1920*1080/60Hz |
| Screen Material | LCD |
|
Screen Size
|
4.5 Inch
|
| Power Input | 6V-25.2V(2S-6S) |
| SD card | Support 256G |
| Net weight | 350±10g |
| System | Avatar HD System |
| Packing List: | |
| Straight DC5.5-XT60 Power Cord | x1 |
| Storage Bag | x1 |
| Lens Cleaning Cloth | x1 |
Preface About Goggles L
To provide users with a cost-effective entry into HD systems while ensuring an excellent experience, we have developed the first single-screen HD goggles equipped with head tracking functionality. This innovative device is designed to deliver an unparalleled FPV experience, allowing pilots to enjoy the combined benefits of head tracking and HD visuals.
Bullet Points:
The goggles are equipped with an in-house developed full-stack image transmission head tracking system. The head tracking sensor, employing a nine-axis gyro module, is integrated into the goggles to capture the pilot's head movements. Paired with a gimbal, it sends signals via the image transmission system to control the camera's pan and tilt, providing pilots with a cockpit-like sensation.
The Avatar HD system adopts industry-leading H.265 encoding technology, delivering 1080P/60FPS FPV video quality for an immersive and responsive experience.
It also supports PPM signal output to Radio Controllers via the Goggles L's 3.5mm headphone TX connector, which in turn outputs to the drone.
Employing cutting-edge optical design, the goggles offer distortion-free and high-resolution imaging at 1920X1080, coupled with a 4.5-inch HD display for clarity and eye protection.
With a built-in Micro SD card slot, users can easily record their flights with just one touch, capturing every exhilarating moment.
Featuring a high-performance directional antenna with a gain of up to 4.9 dBi, the goggles ensure stable signal transmission, enabling longer flight distances.
Compatible with 2-6S voltage input, the goggles are compatible with all drone batteries, providing users with greater flexibility.
The detachable lens design supports various vision needs, allowing for the installation of nearsighted, farsighted, or blue light-blocking lenses to meet individual preferences.
Compatibility with all current Walksnail VTX models ensures stability and the ability to fly when you want to, in both indoor and outdoor environments.
The front cover has an added light-up feature with a cool light bar design to add a technological touch to your gear.
Utilizing premium polyurethane foam, the goggles' face mask ensures softness and comfort, while reducing light leakage for an enhanced wearing experience.
The Goggles L is suitable for RC cars, FPV drones, and fixed-wing. With the most competitive cost, Goggles L allows you to experience true digital HD FPV visuals, bringing clarity and immersion to your FPV adventures.
