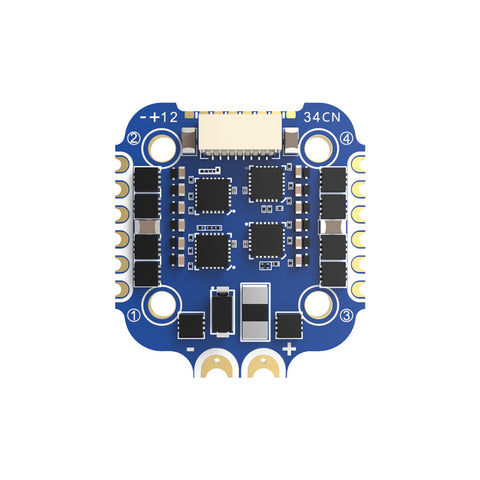

SPEEDYBEE 35A Mini 4IN1 ESC 3-6S 8bit 20x20mm
Streamline your drone’s performance with the SpeedyBee 35A 4-in-1 ESC, designed for a compact 20x20mm mounting system. This ESC runs on the efficient BLHeli_S JH40 firmware and supports a robust continuous current of 35A across four channels, with the capability to burst up to 45A for those critical high-thrust moments. Optimized for DSHOT300/600 protocols and supporting a wide power input range from 3-6S LiPo, it ensures a seamless power supply with VBAT output. A precise current sensor keeps your flight data accurate, all within a remarkably slim 35 x 35 x 5.5mm footprint and a feather-light weight of just 7g, making it an essential component for any high-performance, lightweight drone build.
Specifications
- Firmware: BLHeli_S JH40
- Continuous Current: 35A * 4
- Burst Current: 45A (5 seconds)
- ESC Protocol: DSHOT300/600
- Power Input: 3-6S LiPo
- Power Output: VBAT
- Current Sensor: Supported (Scale=250 Offset=-500)
- Mounting: 20 x 20mm, 3.6mm hole diameter
- Dimensions: 35 x 35 x 5.5mm
- Weight: 7g
Includes
- 1x SpeedyBee 35A 4in1 ESC 20x20mm
