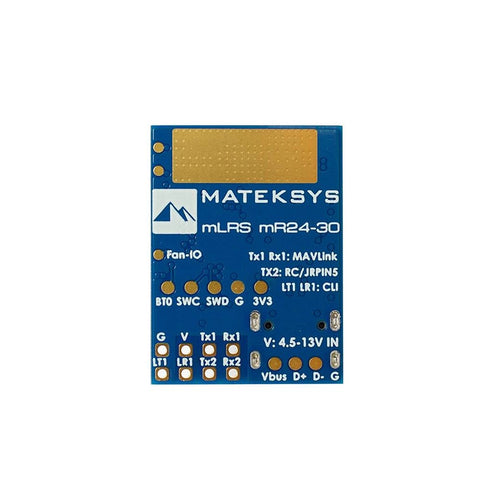

Matek mR24-30 mLRS MAVLink Receiver 2.4GHz
The MATEKSYS mLRS 2.4GHz Receiver - mR24-30 delivers long-range performance in a compact design. Featuring STM32G431KB with mLRS firmware and the LoRa SX1281 chip, it ensures stable communication up to 1000mW across 2.4GHz ISM frequencies. With bi-directional MAVLink, CRSF or SBUS output, and a simple DFU mode, it’s a versatile, reliable receiver with built-in Bluetooth and fan control.
Features
- Reliable Long-Range Communication
- Customizable Setup
- Compatible
- Versatile
Specifications
- Power Dissipation: Average 360mA / Peak 900mA @ 5V IN (50Hz, 30dBm)
- RF Power: 13dBm (min) / 20dBm / 24dBm / 27dBm / 30dBm (1000mW)
- TX1/RX1: Bi-directional Serial MAVLink
- Power Supply: 4.5-13V DC @ “V” Pad
- One button: DFU mode and Bind
- Antenna Connector: IPEX MHF-1
- STM32G431KB: mLRS firmware
- TX2: RC out (CRSF or SBUS)
- RF Frequency: 2.4GHz ISM
- Weight: 4.5g with antenna
- PA/LNA: SKY68383-11
- LoRa SX1281: TCXO
- PCB Size: 28x21mm
Includes
- 1x MATEKSYS mLRS 2.4GHz Receiver - mR24-30
- 1x IPEX MHF1 sleeve dipole antenna 15cm
- 1x Heatsink 20*20*6mm
