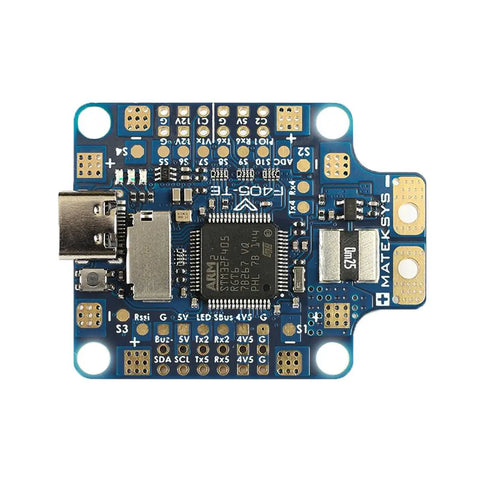

Matek F405-TE Flight Controller

The Matek F405-TE Flight Controller features a 30.5 x 30.5mm mounting pattern and weighs 10g. It features a Barometer, Micro SD Slot, 6x UARTS, 11x PWM outputs, 9-36V DC IN (3-8S LiPo), 220A Current Sensor, BEC 12V 2A, 5V 1.5A and Dual analog camera signal inputs.

Features

OSD: AT7456E(Analog), DJI OSD(Digital)
Dual analog camera signal inputs
11x PWM outputs(S1-10, LED)
6x UARTS, 1x softserial_TX
Beta Flight MATEKF405TE
9-36V DC IN (3-8S LiPo)
ArduPilot MatekF405-TE
INAV MATEKF405TE SD
MCU: STM32F405RGT6
Barometer: SPL06-001
BEC 12V 2A, 5V 1.5A
220A Current Sensor
IMU: ICM42688-P
Micro SD Slot
2x PINIO
1x 12C
4x ADC

Specifications

PWM Outputs: 11x PWM outputs (8x Dshot compatible with BF/ArduPilot)
Pads: 1x Group of G/S1/S2/S3/S4 pads for 4in1 ESC Signal/GND
Mounting: 30.5 x 30.5mm, Φ4mm with Grommets Φ3mm
UARTS: 6x UARTs, 1x Softserial_Tx option(INAV/BF)
ADC: 4x ADC (VBAT, Current, RSSI, Airspeed)
Built-in inverter: UART2-RX for SBUS input
ESC: 4x individual ESC power/signal pads
Camera: Switchable Dual Camera Input
MCU: 168MHz STM32F405RGT6
Blackbox: MicroSD slot (SPI)
Dimensions: 36 x 46 mm
IMU: ICM42688-P (SPI)
Baro: SPL06-001 (I2C)
PINIO: 1x spare PINIO
OSD: AT7456E (SPI)
Weight: 10g

PDB

Battery Voltage divider: 1K:20K (INAV scale 2100, BF scale 210, ArduPilot BATT_VOLT_MULT 21.0)
Current Senor: 220A, 3.3V ADC (INAV/BF scale 150, ArduPilot 66.7 A/V)
PDB: 4x 35A (Max.4x 50A)
Input: 9~36V (3~8S LiPo)
LDO 3.3V: 200mA
BEC: 5V 1.5A
BEC: 12V 2A
