iFlight RGB 10 LED Multi-Colors Race Wire w/ Smart Controller Board

  • QAR 45,00

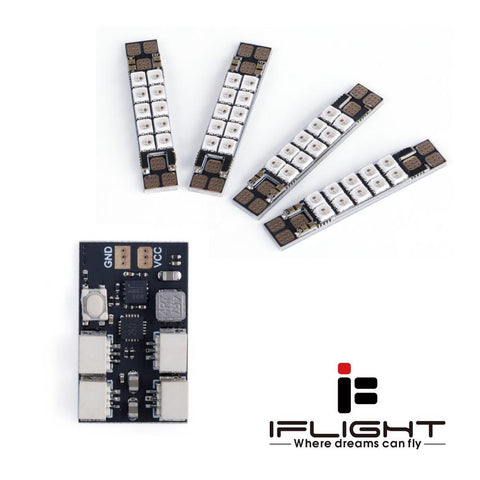

iFlight RGB 10 LED Multi-Colors Race Wire w/ Smart Controller Board

RGB 10 LED 3535 Multi-Colors Race Wire (4pcs)

The traditional race wires prevent damage to wires or even propeller strikes from dropping you out of the air, while also making motor swaps super fast and easy without the need to open up your quad to access your 4in1 ESC or AIO board. that is a kind of progress of professional development. However, there’s still an extra soldering job needed to be done if you need to mount RGB LEDs on it.

That’s why iFlight release this RGB 10 LED 3535 Multi-Colors Race Wire. It is designed with 2oz copper and a 2 layer board which provide virtually no difference in resistance and weight difference when compared to previous original Race Wire but liberates you from extra soldering RGB LED strips job, which is perfect for frames with slim arms. You also have access to multi-colors on one board, no more picking one color LED like before.

This race wire is the perfect upgrade for your racing or freestyle rig.

Features:

- 10 pcs 3535 RGB multi-colors led strips

- Support 40A Constant Current

- PDB and RGB led strips to work independently

Specifications:

- 2oz 2layer copper board

- Dimension: 45*8*4mm

- Input Voltage: 5V DC

- Comes in a set of 4 individual boards

- LED color: Multi-colors

- Weight: 2.2 grams per pc

How to use:

*Connect the motor cables of 4 IN 1 ESC and cables of the motor to the soldering pad of the Race Wire separately

*Connect the Race Wire to the 5V power source (Pin 5V+ & GND)

*IN connected to signal cable (Multi-colors programmable)

*O connected to the next Race Wire then they’re in series.

*Attention: isolation between the carbon and the board is still required.



LED Strip Smart Controller Board

- Supports (4) Ultra Bright LED Strip

- Incredibly Compact & Easy To Install
- Fully Adjustable Color & LED Light Pattern
- Brightness Adjustable for Maximum LED Control
- Transmitter & Button Based Setup for Maximum Flexibility
- Power in: 2S-6S
- Size: 25.3*19*5.5mm



Package Included:

4x RGB 10 LED 3535 Multi-Colors Race Wire

1x LED Strip Smart Controller Board
