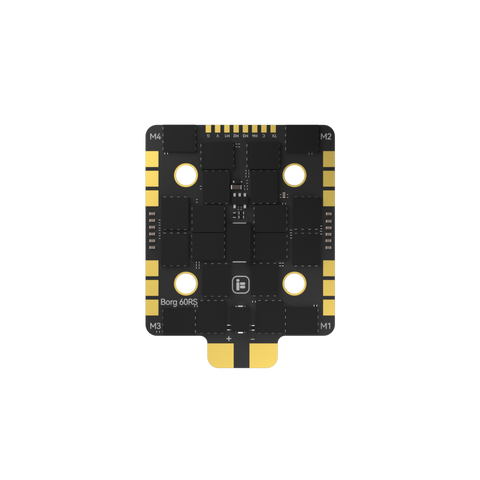

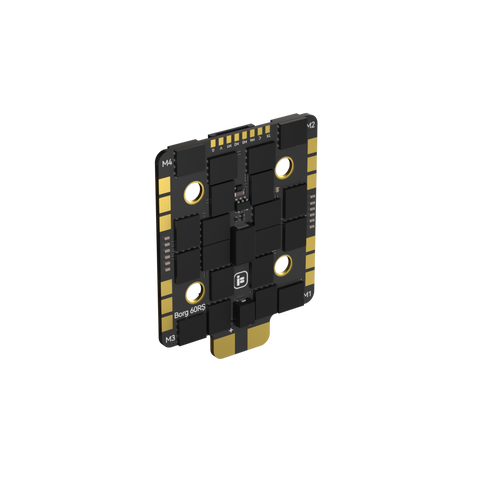

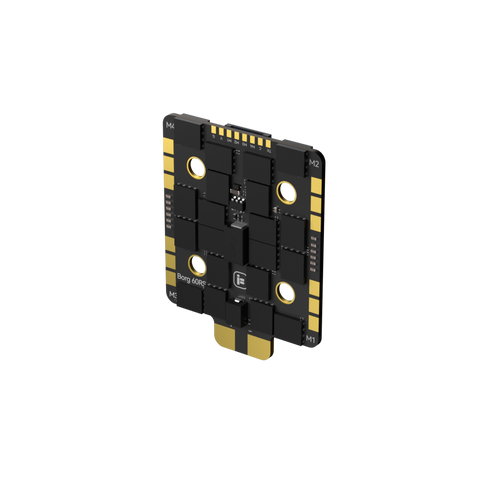

iFlight Borg 60RS ESC 20x20mm
Introducing the All-New Borg Series – Power Meets Precision!
The new ESCs feature an integrated anti-spark filter, providing protection against voltage spikes that can damage your equipment. Designed with high polymer capacitors, this ESC eliminates the need for external capacitors in 5-inch racing models, simplifying installation and reducing weight. Experience enhanced reliability and performance with this cutting-edge technology, tailored for the demands of competitive racing.
Features
- Support 4- 8S Battery Input for versatile power options.
- 8-Layer 3OZ PCB allows for continuous current handling of 60A, with a peak current of 65A.
- Integrated Anti-Spark Filter protects your equipment from voltage spikes.
- Built-in High Polymer Capacitors eliminate the need for external capacitors in racing models.
- FPC Ribbon Cable Connection ensures a more reliable link between the flight controller and ESC.
Specifications
- Product Name: Borg 60RS ESC
- Input Voltage: 4-8S; Support LIHV battery
- Max. Continuous Current: 60A
- Max. Burst Current: 65A (10s)
- MCU: STM32G071N
- Driver: FD6288
- Firmware: BL32 (32bit ESC)
- Target: IFLIGHT_BLITZ_G3 32.9
- Current Sensor: No
- BEC: No
- Telemetry: Supported
- Bidirectional DSHOT: Supported
- Dimensions: 45*35mm±1
- Mounting Holes: 20 x20 mm/Φ4mm
- Weight: 9.5g±1
- Protocol: Supports DShot150/300/600、MultiShot、OneShot etc.
Packing List
- 1 x Borg 60RS ESC
- 1 x Cables set
- 4 x silicon grommets
