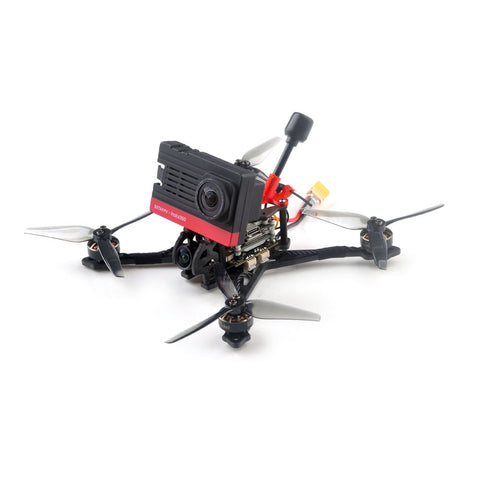

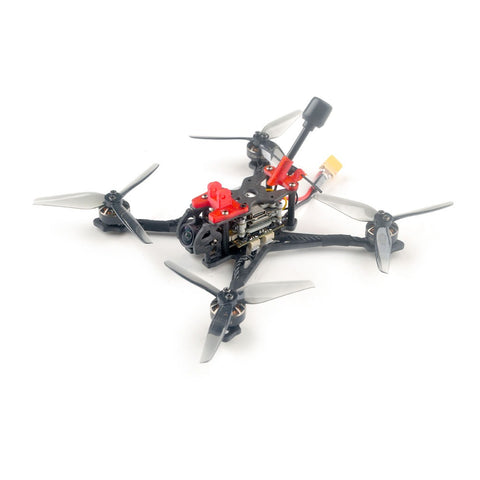

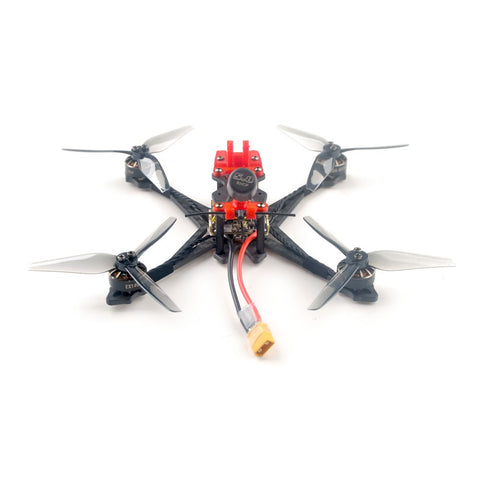

HappyModel Crux35 HD V2 3.5 Inch 4S Ultralight Caddx Digital Nebula Nano System FPV Racing Drone BNF ELRS 2.4GHz
Introduction:
CRUX35/CRUX35 HD is an ultra-lightweight 3.5Inch FPV Freestyle FPV Racing Drone, the weight of the whole drone is only 87g for the analog version and 108g for the digital HD version. The Crux35 serials drone use Happymodel EX1404 high-efficiency motor and HQPROP 3.5-inch three-blade propeller to ensure the largest thrust-to-weight ratio under the most efficient premise, which can bring you a smooth Freestyle flying experience.
The HD version is equipped with CADDXFPV Nebula and Vista HD image transmission system. The analog version is equipped with CADDXFPV Ant ant camera.The receiver version can be SPI ExpressLRS and SPI Frsky (S-FHSS compatible) for choose.ExpressLRS is the most popular RC link system by now , it could performance very well with Crux35 and Crux35 HD.
Features:
- Ultra-lightweight 3.5-inch BNF FPV Freestyle Drone
- HD video transmission and analog video transmission are optional
- Integrated ExpressLRS SPI receiver or Frsky SPI D8/D16 receiver
- High efficiency EX1404 power system
- Can be equipped with Naked Gopro or SMO4K
- Support 3-4S battery 4S 750mah battery is recommended, maximum support 4S 1100mah
Specifications:
- Brand: Happymodel
- Model: Crux35 Analog / Crux35 HD
- Wheelbase: 150mm

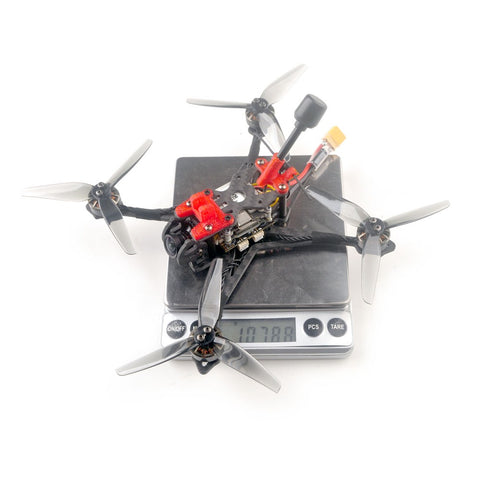

- Weight: 87g ( Analog); 108g ( HD)
- Size: 130mmx130mmx45mm(without propellers)
- Version Optional: Analog / HD
- Receiver optional: SPI ExpressLRS 2.4GHz / SPI Frsky D8/D16 (S-FHSS compatible)
- Camera option: HD version Nebula+Vista
- Analog version Ant+OVX303 VTX
- Flying time: 9min~15min 4s 750mah battery
|
Motor |
Mode: EX1404 |
|
Propellers |
Propeller Diameter: 3.5 inch |
|
Flight controller (ELRS Version) |
MCU:STM32F411CEU6 (100MHZ, 512K FLASH) Size:32*28*9mm Power supply: 2-4S Lipo battery Built-in 12A Blheli_s ESC each Built-in Betaflight OSD(SPI Control) Built-in 5V 1A BEC Flight controller firmware target: CRAZYBEEF4SX1280 |
|
Flight controller (Frsky version) |
MCU:STM32F411CEU6 (100MHZ, 512K FLASH) Built-in 2.4G Power Amplification Firmware target: MATEKF411RX |
|
Onboard 4in1 ESC |
MCU upgraded to EFM8BB21 Current: 5A continuous peak 6A (3 seconds) |
|
Onboard SPI ExpressLRS 2.4GHz Receiver (ELRS Receiver version) |
Packet Rate option: 25Hz/50Hz/150Hz/250Hz/500Hz Antenna : SMD antenna Receiver protocol to flight controller: CRSF Could bind with Happymodel ES24TX , ES24TX Lite, ES24TX Slim and DIY 2.4GHz ELRS TX module |
|
Onboard SPI Frsky 2.4GHz receiver (Frsky Receiver Version) |
SPI BUS receiver Dual antenna |
|
Caddx FPV Digital HD Camera Nebula Nano Kit (Digital HD version) |
Weight(camera included]: 24g Antenna: 2.3g Dimensions: Vista Kit 30×29×13mm Camera 14×14×21mm Operating Frequency: 5.725-5.850GHz Transmitter Power[EIRP]: FCC/SRRC/MIC:<30dBm CE:<14dBm Min.latencylend-to-end) 720p 60fps:32ms Max.Transmission Distance FcC/SRRC: 4km CE:0.7km lnput Power: 7.4-26.4V Power Output: 25mW/200mW/500mW/700mw Goggles : Work with DJl goggles Camera Sensor: 1/3”CMOS Lens: 2.1mm,f/2.1 Shutter: Rolling shutterFOV: 142°(D);122°(H);75°(V) LHCP antenna |
|
Caddx ANT 1200tvl camera (Analog version) |
Image Sensor: 1/3" CMOS Sensor Horizontal Resolution: 1200 TVL TV System: NTSC or PAL IMAGE: 16:9 or 4:3 Synchronization: Internal Electronic Shutter: PAL: 1/50~100,000; NTSC: 1/60~100,000 S/N Ratio : >52dB (AGC OFF) Video Output: CVBS Lens: 1.8mm Min. Illumination: 0.001Lux@F1.2 Auto Gain Control: YES BLC: YES WDR: Global WDR DNR: 3D DNR Dimensions: 14*14mm(with bracket to 19*19mm) Wide Power Input: DC 3.7-18V Work Temperature: -20℃~+60℃ Weight: 2g (N.W.) |
|
OVX303 5.8Ghz VTX (Analog version) |
Model: OVX303 Frequency: 5.8G 40CH Transmitting Power: 0/RCE/25mw/100mw/300mw Power supply: DC 5V Current (5v): <650ma (300mw) Weight: 1.5gram without antenna |
Recommended(Not Included):
- 4S: 750mah Battery

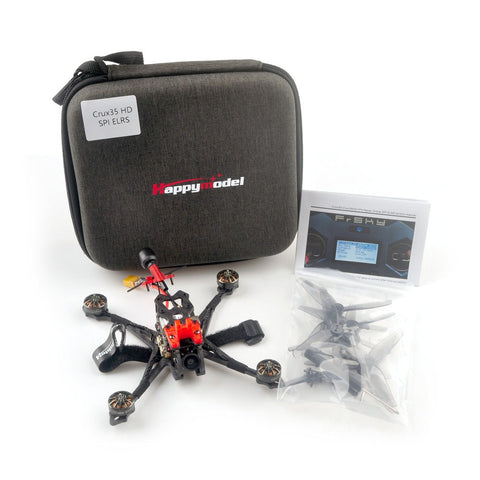

Package Included (HD Version)
- 1x Crux35 Frame
- 1x CaddxFPV Digital HD Camera Nebula Nano Kit
- 4x Happymodel EX1404 KV3500 brushless motor
- 1x HQProp T3.5X2X3Grey (4cw+4ccw)
- 1x Screw Driver
- 1x Buckle for battery
- Option1: ELRS X1 flight controller
- Option2: CrazyF411 flight controller
