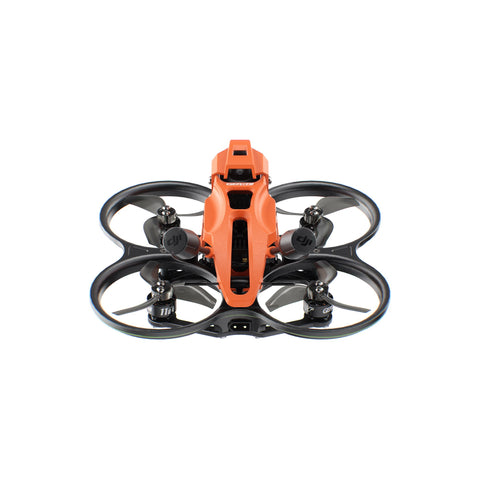

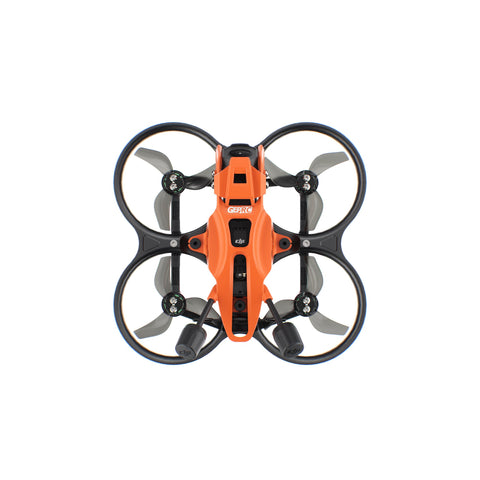

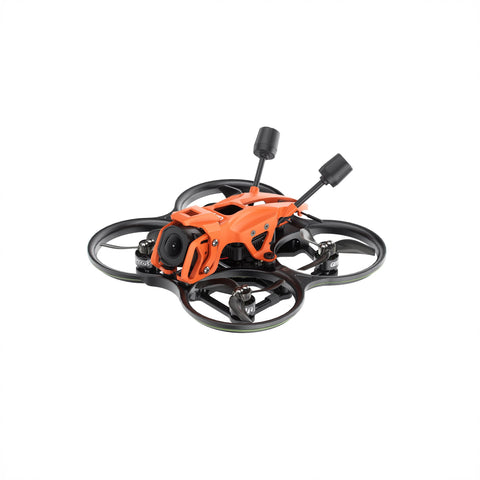

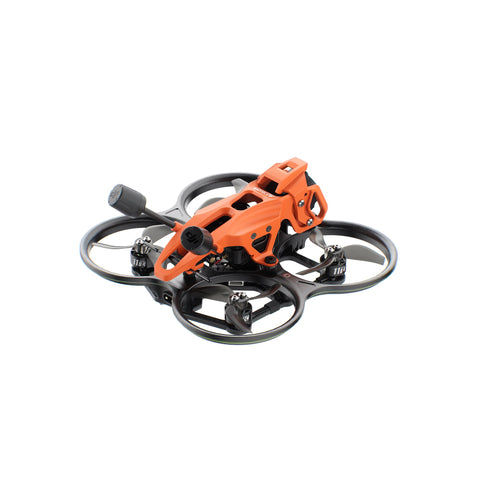

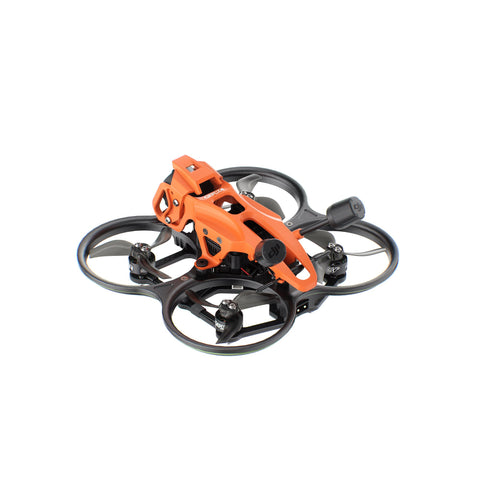

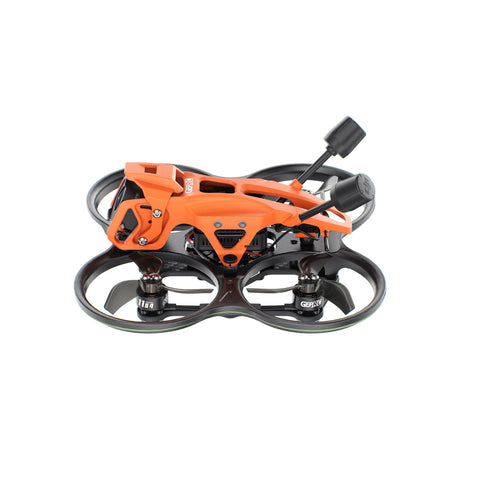

GEPRC DarkStar22 O4 Pro 3S Digital HD CineWhoop PNP ELRS 2.4G
The DarkStar22 combines high performance with portability, equipped with the DJI O4 Pro VTX system, delivering ultra-low latency, HD stable long-range transmission.
It features the latest TAKER F405 20A ELRS2.4 2-4S AIO flight controller with an integrated receiver, eliminating the need for an additional RX and ensuring compatibility with all mainstream ELRS protocol radios. The innovative five-point floating damping system provides a stable working environment for the O4 Pro gyro, enabling smooth and stabilized video output.
With a reserved GPS mount, pilots can enjoy safer flights in complex outdoor environments. The SPEEDX2 1104 7500KV motors, paired with newly designed high-efficiency 2219 props, deliver a strong punch while maintaining an excellent balance of power and endurance.
The entire build is compact, reinforced with a thickened canopy and prop guards for crash resistance, making it beginner-friendly and safe to fly both indoors and outdoors. Truly a performance beast among micro cinewhoops!
Feature
- Mini-sized drone with DJI O4 Pro HD system, supporting up to 4K 120fps recording.
- Powered by the latest TAKER F405 20A ELRS2.4 2-4S AIO with integrated ELRS 2.4G receiver.
- Camera protection canopy effectively shields the O4 Pro camera module.
- All-new five-point damping design, enhancing stability for the O4 Pro camera module.
- Simple body structure – only 4 screws to disassemble the frame.
- LED strip powered by a mini controllable BEC – small in size, big in function.
- O4 Pro mounting module includes reserved GPS slot, supporting most mainstream Mini GPS modules.
Specifications
- Model: DarkStar22 O4 Pro
- Frame: GEP-DS22
- Main Carbon Plate Thickness: 2.5mm
- Wheelbase: 100mm
- FC System: TAKER F405 20A ELRS2.4 2-4S AIO
- MCU: STM32F405
- Gyro: ICM42688-P
- FC Firmware: GEPRC_TAKER_F405 AIO
- Flash: 16MB
- ESC: 8Bit 20A
- Motor: SPEEDX2 1104 7500KV
- Propellers: HQProp 2219-3
- Power Connector: XT30U-M
- VTX: DJI O4 Air Unit Pro
- Camera: DJI O4 Air Unit Pro camera module
- Antenna: DJI O4 Air Unit Pro antenna
- Receiver: PNP (O4 Pro built-in RX) / ELRS 2.4G
- Weight (ELRS 2.4G version): 126.8g
- Recommended Battery: 3S 720mAh XT30
- Flight Time: 6min45s (tested under smooth cruising; actual flight time depends on flight style)
Includes
- 1 × DarkStar22 Drone (PNP or ELRS 2.4G)
- 1 × Prop Guard
- 1 × Top Plate
- 1 × Camera Cover
- 1 × Battery Pad
- 2 × Propellers (pairs)
- 1 × 10*120mm Battery Strap
- 1 × L-shaped Hex Wrench 1.5mm
- 1 × Battery Anti-slip Pad
- 1 × Damping Ball Punch Tool
- 1 × Binding Pin
- 1 × USB Adapter Board
- 1 × 5P Terminal Cable
Spare Screw Pack Includes:
- 2 × Damping Balls
- 4 × M2*4 Round-head Screws
- 4 × M2*7 Round-head Screws
- 4 × M2*6 Countersunk Screws
- 4 × M2*5 Countersunk Screws
- 4 × M2*6 Round-head Screws
- 4 × M2*7 Countersunk Self-Tapping Screw
