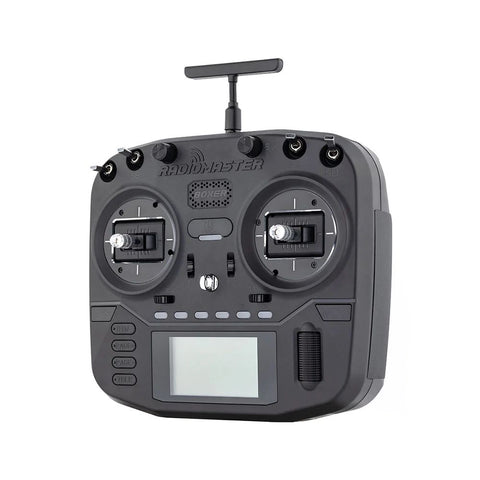

RadioMaster Boxer Radio Controller Transmitter Multi-Protocol
Battery Option:

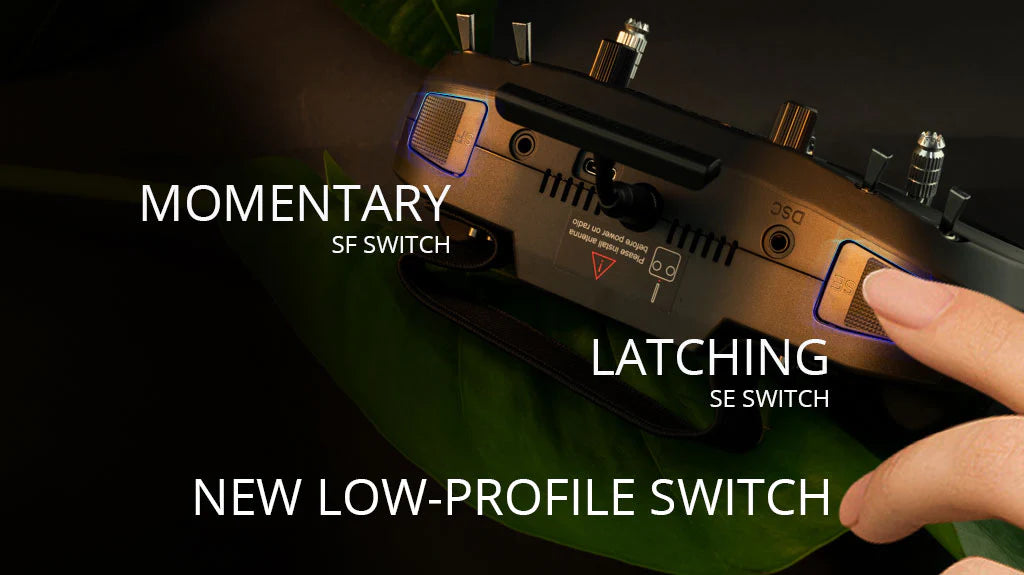

The RadioMaster Boxer Radio Transmitter is compact, ergonomic, and powerful. This radio features an STM32VGT6 processor, QC3.0 charging, and new low-profile latching SE switch and momentary SF switch. Featuring full size hall gimbals for precision control and an intuitive button layout, the BOXER gives you a compact radio without compromising on comfort and function.
Note: This radio comes in three options, please choose a Receiver Protocol:
- 4-in-1 Multi-Protocol
- ExpressLRS 2.4GHz
- CC2500
Features
- Industry first fabric handle for improved portability
- Standard JR module compartment Internal module
- External Module Power Slots in Battery Cover
- Signature RadioMaster Carrying Case
- Supports External 2S Power Supply
- Gimbal Protector for Safe Storage
- 4-in-1, CC2500, or ELRS Options
- Oversized Battery Compartment
- Supports USB-C direct charging
- Pre-installed EDGETX Firmware
- V4.0 Full-Size Hall Gimbals
- Supports 2.0A MAX
- Ergonomic Design
Specifications
- Battery: 7.4V 2-cell Lithium-Polymer / Two 3.7V 18650 Lithium-Ion cells (batteries not included)
- Battery: Supports 2S 6200mAh for up to 20 hours (Batteries are not included)
- Standardized button layout: Versatile 6-position switch for flight mode access
- Radio Firmware: EdgeTX (Transmitter) / Multi-Module (RF module) / ELRS
- Transmitting Power: 30dBm max FCC (ELRS); 20dBM (4-in1/CC2500)
- Gimbal: High precision 4.0 Hall gimbals as standard (AG01 Optional)
- Refresh Rate: Internal ELRS module capable of 1,000Hz (ELRS only)
- Upgrade Method: USB/SD card & EdgeTX Companion PC software
- Protocols Options: 4-in-1, CC2500, or ELRS 2.4GHz
- Channels: Max 16 channels (Receiver dependent)
- Processor: STM32VGT6 processor with 1MB RAM
- SD card: Slot with pre-loaded SD card included
- External module: JR/FrSKY/Crossfire compatible
- Module Power Slots: External in Battery Cover
- Antenna: Adjustable/Removable T-Antenna
- Display: 128*64 Monochrome LCD display
- Supported protocols: Module dependent
- Cooling Fan: Built-in (ELRS Only)
- Frequency: 2.400GHz-2.480GHz
- Voltage Range: 6.6-8.4V DC
- Model: Radiomaster Boxer
- Fast Charging: QC3.0
- Size: 235*178*77mm
- Weight: 532.5g
Includes
- 1x RadioMaster Boxer Radio Transmitter (Choose 4-in-1 Multi-Protocol, CC2500, OR ELRS 2.GHz)
- 1x 3D Printed Gimbal Protector
- 1x Radiomaster Carrying Case
- 4x Low Tension Springs
- 1x 18650 Battery Tray
- 1x 1.5mm Allen Key
- 2x M4*4 Screws
- 1x USB-C Cable
- 1x T-Antenna
- 1x Stickers
- 1x Manual
How To Change Mode 2 To Mode 1
