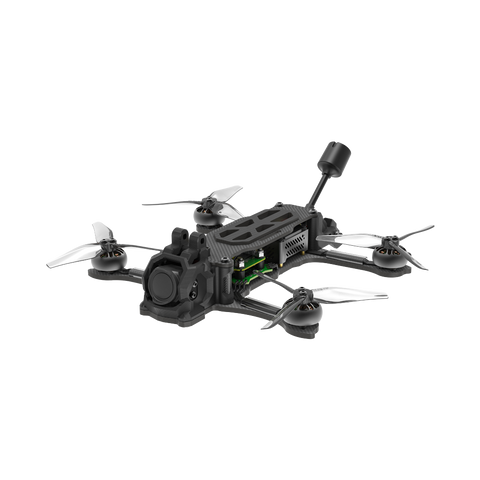

iFlight iH3 O3 DJI HD System 4S FPV FreeStyle Racing Drone PNP DJI Remote
Let’s meet the iH3 - a new high-quality cruise drone that offers an exceptional flying experience at an affordable price.
Equipped with DJI O3 digital system, the iH3 is a 3.5-inch drone that boasts stable flight, easy operation, and superior quality. Its H-shaped frame structure and Anti-Spark Filter ensure balance and stability even during intense operations. Moreover, it can carry a naked GoPro for more exciting flight footage.
Recommended batteries:
- 1050mAh 4S // Maximum power, ready for freestyle with stick feel of a 5inch and great range for Mid-LongRange cruising.
- 850mAh 4S // Great weight to power ratio for your daily adventure.
Highlights
- DJI O3 HD Air Unit Low-Latency digital transmission
- 4K Stabilized Video with 155° Ultra-Wide Angle
- Secured Battery Plug with Anti-Spark Filter
- GPS Pre-Installed for More Safety at A Distance
- Special canopy to carry naked GoPro or Gopro Bones.
- The H-shaped frame structure for balance, no props in view.
Specifications
- Product Name: iH3 O3 4S HD BNF
- FC: BLITZ Mini F7 FC
- ESC: BLITZ Mini E55 4-IN-1 ESC
- Video Transmission: DJI O3 Air Unit
- Geometry: H-shaped
- Frame: 168 mm (wheelbase)
- Motor: XING 1504 3100KV motors
- Prop: HQ 3.5*2.5*3 propellers
- Weight of the Aircraft: Approx. 216 g (Without Battery)
- Dimensions (L×W×H): 135×100×40 mm (From Canopy)
- Max Speed: 110 Km/h (Manual Mode)
- Maximum Takeoff Altitude: 3200m
- Max Hover Time: Approx. 12 mins (No Load with 4S 850mAh Battery) / Approx. 18 mins (No Load with 4S 1050mAh Battery)
- Max Wind Speed Resistance: Level 5
- Operating Temperature Range: -10° to 40° C (14° to 104° F)
- Antennas: DJI O3 Air Unit Dual-band Antenna
- GNSS: GPS+Galileo
Video Transmission
- Product Name: DJI O3 Air Unit
- Weight: Approx. 36.4 grams（headband included）
- Dimensions (L×W×H): L32.5 * W30.5 * H 14.5mm
- Communication Bandwidth： Max 40 MHz
- FOV (single screen): 155°
- Communication Frequency: 2.400-2.4835 GHz；5.725-5.850 GHz
- End-to-End Latency
- With DJI FPV Goggles V2:
- 810p/120fps Video Transmission Quality: The latency is lower than 28 ms.
- 810p/60fps Video Transmission Quality: The latency is lower than 40 ms.
- With DJI Goggles 2:
- 1080p/100fps Video Transmission Quality: The latency is as low as 30 ms.
- 1080p/60fps Video Transmission Quality: The latency is as low as 40 ms.
- Max Video Transmission Bitrate: 50 Mbps
- Max Video Transmission Range：10 km (FCC), 2 km (CE), 6 km (SRRC)
- Operating Temperature Range: -10º to 40º C (14° to 104° F)
- Power Input: 7.4-26.4 V
- Audio Transmission: N/A
Packing List
- 1x iH3 O3 4S HD PNP / BNF ELRS 2.4G
- 1x DJI O3 Air Unit Antenna
- 1x Battery pads
- 1x Prop(Pair)
- 1x Screw Bag
- 1x Naked Gopro Cable
