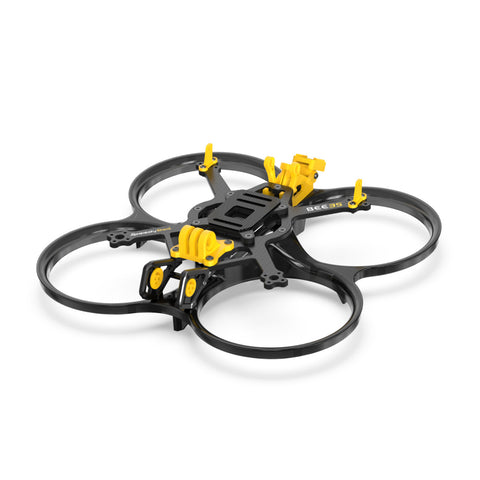

SPEEDYBEE Bee35 PRO 3.5 Inch HD DJI O3 Cinewhoop Frame Kit
Specifications
| Product Name | SpeedyBee Bee35 Frame |
| Wheelbase | 153mm |
| Top Plate Thickness | 3.5mm |
| Bottom Plate Thickness | 2mm |
| Camera Mounting Distance | 19/20mm |
| ESC/Motor Mounting Height | 24mm |
| Flight Stack Mounting Holes | 20*20/25.5*25.5/30.5*30.5mm |
| Video Transmitter Mounting Holes | 20*20/25.5*25.5 |
| Propeller Size | 90mm |
| Motor Mounting Holes | 12*12mm |
| Weight | 138g |
| CNC Heat Sink | 15g |
| Camera Gimbal | 28g |
| Recommended Motor | 1806/2004/2006 |
| Recommended KV | 4S/2500-3500KV,6S/1800-2300KV |
| Recommended Battery | 900-1500mAh 4S/6S |
